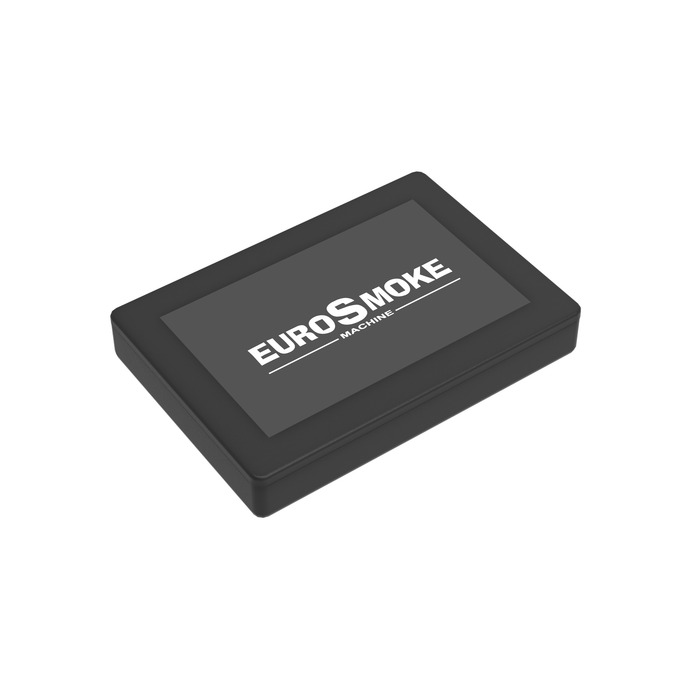

Eurosmoke WIFI DMX Remote
The EuroSmoke Wi-Fi DMX Remote is an innovative device that allows you to control DMX equipment, such as EuroSmoke machines, via a wireless (Wi-Fi) connection instead of the traditional wired DMX connection. This device significantly simplifies setups and enhances the flexibility of lighting and effects installations.
Key Features
Wireless control: Replaces traditional DMX connection with a reliable Wi-Fi interface.
Simplified installation: Reduces the need for cabling and facilitates equipment organization.
Great flexibility: Enables remote management of multiple devices with high precision.
LCD touch screen: Intuitive interface for seamless and quick operation.
Extended battery life: Provides up to 12 hours of use (30 hours with screen off and HF DMX enabled).
Applications
The EuroSmoke Wi-Fi DMX Remote is ideal for:
Professional events and concerts.
Stage and theatrical installations.
Festivals and shows requiring dynamic management of lighting and atmospheric effects.
Technical Specifications
| Feature | Details |
|---|---|
| Model | EuroSmoke Wi-Fi DMX Remote |
| Device Type | Wireless DMX Controller |
| Reference | 150ESMTWD |
| Voltage | 5V DC |
| HF Power | 2.4 GHz: 20dB (100mW) |
| Frequency | 21 preset / Auto mode |
| Possible DMX Universe | 31 (15,872 DMX Channels) |
| Electrical Connector | Mini USB (charging and firmware update) |
| Protection Level | IP20 |
| Battery Life | Approx. 12h (30h with screen off and HF DMX enabled) |
| Interface | LCD Touch Screen |
| Input/Output | 5-Pin XLR |
| Control Modes | Manual / Program Uploaded / Recorder |
| DMX Protocol | W2.4EC-DMX-B |
| Dimensions (L x W x H) | 100 x 70 x 16 mm |
| Weight | 0.200 kg |
| Operating Temperature | +5° to 45° C |
| Humidity | 20% to 90% (non-condensing) |
Conclusion
The EuroSmoke Wi-Fi DMX Remote is an essential solution for professionals looking to optimize the management of their DMX equipment. With its wireless technology, ease of use, and advanced performance, it is a major asset for all stage and event installations.
Technical sheet available upon request.
